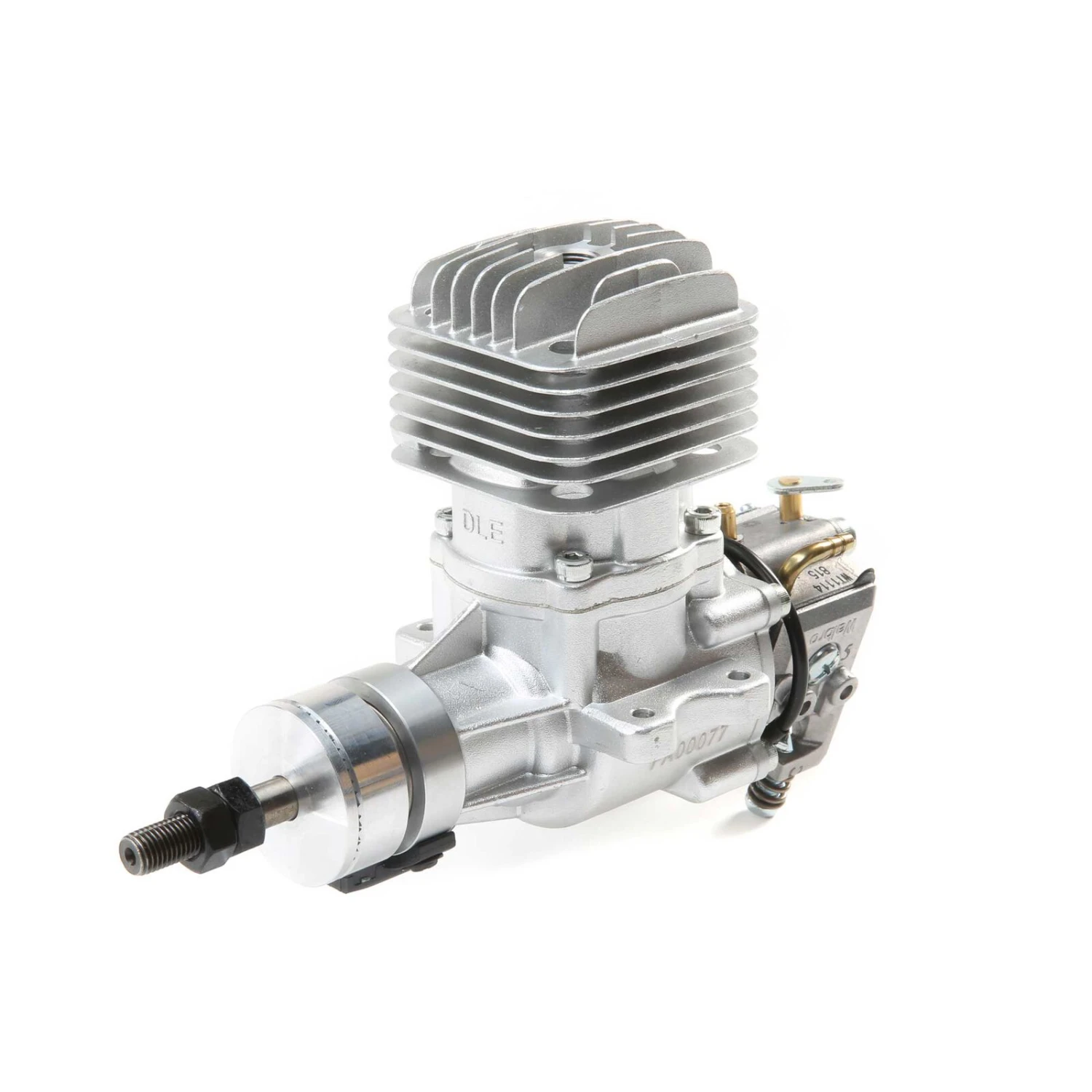

-20 20cc Gas Airplane Engine With Muffler

-20 20cc Gas Airplane Engine With Muffler - Image 2

-20 20cc Gas Airplane Engine With Muffler

Original price was: $279.99.Current price is: $97.99.

SKU: DLEG0020 Categories: Engines, Parts & Electronics & Accessories Tag: DLE Engines

Get Quality, Get More
No-Questions-Asked Returns
Service that stands out, online and always timely.
fast shipping

Description
Reviews (0)

Key Features

Two sealed bearings on crankshaft-simple design for lighter weight
Beam mounting allows easy fit in the same mount as comparable glow engines
Aluminum alloy crankcase with advanced CNC machining
Rear mounted pumped carburetor ensures easier installation and smooth idling and dependable fuel flow during flights
Fully automatic electronic ignition
Also includes: spark plug, gasket, bolts, throttle arm extension and manual
Two-year limited warranty through Hobby Services beginning at date of purchase

Overview

Glow power isn’t the only option anymore. The DLE-20 not only fills the displacement gap, but includes a beam mount to make the glow-to-gasoline upgrade drop-in fast and easy. A rear pumper carb simplifies installation and adjustment.

A generous package of “extras” and electronic ignition for starting ease and top performance make the DLE-20 an attractive alternative to glow…and a solid buy for value and performance.

DLE Electronic ignition

Electronic ignition is the no-hassle answer to simpler starts and higher performance.

Loaded with Extras!

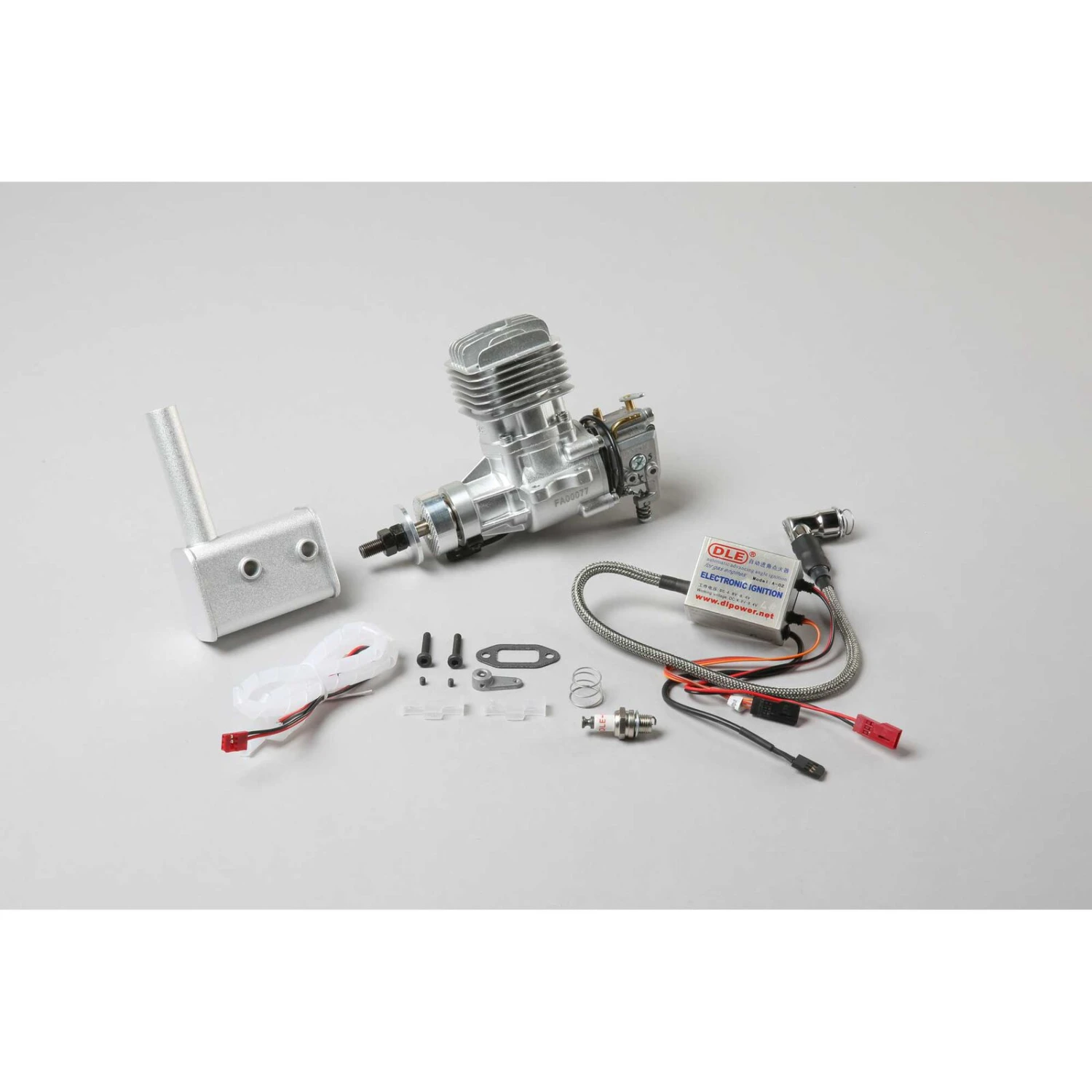

The DLE-20 package includes a muffler, spark plug, gasket, bolts, throttle arm extension & manual.

Two sealed bearings on crankshaft-simple design for lighter weight
Beam mounting allows easy fit in the same mount as comparable glow engines
Aluminum alloy crankcase with advanced CNC machining
Rear mounted pumped carburetor ensures easier installation and smooth idling and dependable fuel flow during flights
Fully automatic electronic ignition
Also includes: spark plug, gasket, bolts, throttle arm extension and manual
Two-year limited warranty through Hobby Services beginning at date of purchase

Product Specifications

Displacement	1.22 cu in (20cc)
Oil Type & Content	30:1 2-cycle oil mixture
Product Length	5.43″ (138mm) from carburetor to prop washer
Ignition Weight	4.23oz (120g)
Muffler Weight	1.76oz (50g)
Cylinders	Single
Product Width	2.37″ (60mm) between center of mounting holes
Total Weight	29.9 oz (820 g)
Stroke	1.0″ (25mm)
Muffler Type	Pitts
Engine (Only) Weight	22.93 oz (650g)
Power Type	Gas
Plug Type	NGK CM6
Bore	1.3″ (32mm)
Crankshaft Type	Threaded
Product Height	3.56″ (90mm) from center of crankshaft to top of cylinder head
Prop Range	14×10 – 17 x 6
Starter Type	Hand Held Starter
