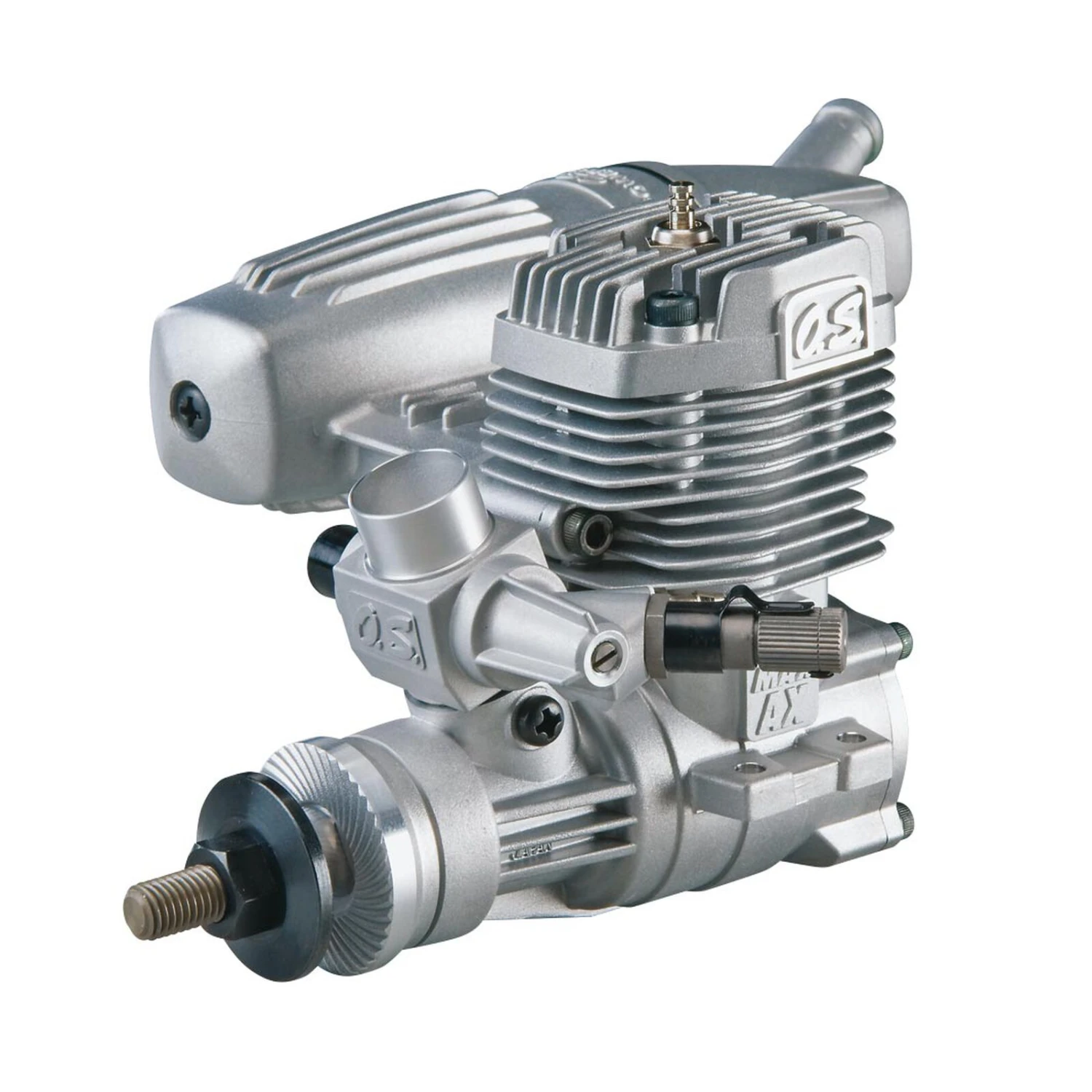

35AX ABL .35 Airplane Glow Engine With Muffler

Original price was: $237.41.Current price is: $96.99.

SKU: OSMG0545 Categories: Engines, Parts & Electronics & Accessories Tag: OS Engines

Get Quality, Get More
No-Questions-Asked Returns
Service that stands out, online and always timely.
fast shipping

Description
Reviews (0)

Big power in a small AX engine!

All of the features that make AX Series the choice of more and more modelers: Distinctive 5-sided heat sink head design for better cooling, diagonally-mounted needle that makes adjustments much safer, and dual-layer durability of ABL (Advanced Bimetallic Liner) construction.

Produces exceptional output for popular-sized planes.
The same mounting dimensions as the 32SX and 25FX engines.

The included E-3080 muffler effectively dampens noise and is fully positionable.

Key Features

Same mounting dimensions as the O.S. .32SX and .25FX
Weighs only 0.35oz (10g) more than the .32SX
Advanced Bi-Metallic Liner. This process uses a double layer of plating material rather than one thick layer. This helps the metal to bond to the cylinder and is more durable. Also, the plating process is more consistent, resulting in a more precise fit between piston and sleeve for better compression, longer life.
Newly designed E-3080 Power Box muffler generates mild and pleasant sound and is constructed with an O-ring between the front and rear body to prevent oil leaking and is fully positionable
21K carburetor with needle valve angled toward rear of engine for safer adjustments
Ball bearing-supported crankshaft

Product Specifications

Manufacturer #	13100
Product Height	2.4″ (61.5mm) bottom of mounting tab to top of cylinder head
Prop Range	10×6 – 12×6
RPM Range	2,500 – 13,000
Cylinders	Single
Product Width	1.8″ (45mm) at mounting tabs
Bore	0.795″ (20.2mm)
Power Type	Glow
Plug Type	O.S. #8
Stroke	0.709″ (18mm)
Crankshaft Type	Threaded
Benchmark Prop	10×6 break in
Displacement	0.352 cu in (5.77 cc)
Oil Type & Content	At least 18% synthetic lubricant
Product Length	3.0″ (75.5mm) from back plate to front of drive hub
Engine (Only) Weight	9.88 oz (280 g) w/o muffler
Crankshaft Threads	UNF1/4-28
Muffler Weight	2.93 oz (83 g)
Muffler Type	2-piece aluminum
