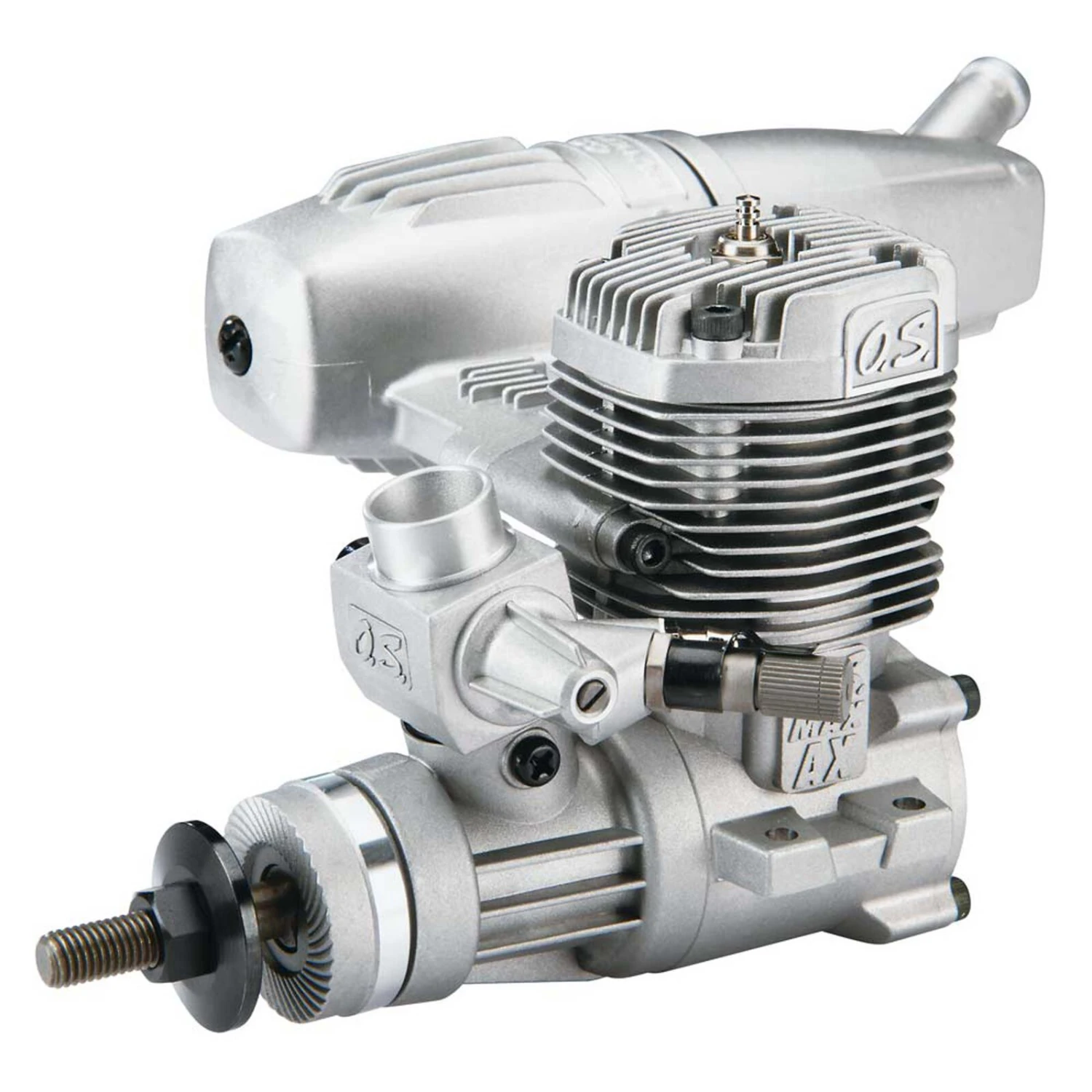

46AXII ABL .46 Airplane Glow Engine With Muffler

Original price was: $203.89.Current price is: $99.99.

SKU: OSMG0548 Categories: Engines, Parts & Electronics & Accessories Tag: OS Engines

Get Quality, Get More
No-Questions-Asked Returns
Service that stands out, online and always timely.
fast shipping

Description
Reviews (0)

Plentiful power for sport and aerobatic aircraft!

Experience the all-out power of the O.S. 46AX II ABL w/Muffler! Features include a squared-off E-3071 Power Box muffler, a 40K carburetor with a rear angled needle valve, a ball bearing-supported crankshaft and an A3 glow plug.

Ball bearing-supported crankshaft.
A3 glow plug.
Two 0.1″ x 1.4″ (3 x 35 mm) cap head muffler screws.
2-year limited Hobby Services warranty beginning at the date of purchase.

Advanced Bi-metallic Liner process uses a double layer of plating material, rather than one thick layer. This helps the metal to bond to the cylinder and is more durable. The process is also more consistent, resulting in a more precise fit between the sleeve and the piston for better compression and longer life.
E-3071 Power Box™ muffler with a squared-off shape enables it to fit in a wide variety of cowls.
40K carburetor with rear angled needle valve for added safety.

Key Features

Advanced Bi-Metallic Liner. This process uses a double layer of plating material rather than one thick layer. This helps the metal to bond to the cylinder and is more durable. Also, the plating process is more consistent, resulting in a more precise fit between piston and sleeve for better compression, longer life.
Side exhaust
E-3071 Power Box muffler with squared-off shape enables it to fit into a variety of cowls
40K carburetor with rear angled needle valve for added safety
Ball bearing-supported crankshaft
Two-year limited warranty through Hobby Services beginning at date of purchase

Product Specifications

Manufacturer #	15490
Product Height	3.3″ (85.2mm) crankcase botton to top of cylinder head
Prop Range	10.5×6 – 12×6-7
RPM Range	2,000 – 17,000
Muffler Type	2-piece aluminum
Benchmark Prop	10×6 for break-in
Displacement	0.455 cu in (7.45cc)
Oil Type & Content	At least 16% synthetic lubricant
Product Length	4.4″ (111.7mm) from backplate to end of crankshaft
Cylinders	Single
Product Width	2″ (50.8mm) including mounting tabs
Bore	0.866″ (22mm)
Crankshaft Type	Threaded
Power Type	Glow
Plug Type	A3
Stroke	0.772″ (19.6mm)
Crankshaft Threads	UNF5/16 – 24
Cylinder Type	Advanced Bi-Metallic Liner
Muffler Weight	3.81 oz (108 g)
Engine (Only) Weight	13.3 oz (378g) w/o muffler
