Axial 1/10 SCX10 III Jeep JL Wrangler With Portals 4WD Kit (AXI03007)

Axial 1/10 SCX10 III Jeep JL Wrangler With Portals 4WD Kit (AXI03007) - Image 2

Axial 1/10 SCX10 III Jeep JL Wrangler With Portals 4WD Kit (AXI03007) - Image 3

Axial 1/10 SCX10 III Jeep JL Wrangler With Portals 4WD Kit (AXI03007) - Image 4

Axial 1/10 SCX10 III Jeep JL Wrangler With Portals 4WD Kit (AXI03007) - Image 5

Axial 1/10 SCX10 III Jeep JL Wrangler With Portals 4WD Kit (AXI03007) - Image 6

Axial 1/10 SCX10 III Jeep JL Wrangler With Portals 4WD Kit (AXI03007)

Original price was: $349.99.Current price is: $96.99.

SKU: AG9IY 605482689325 Categories: Kit, RC Cars and Trucks

Get Quality, Get More
No-Questions-Asked Returns
Service that stands out, online and always timely.
fast shipping

Description
Reviews (0)

Axial SCX10 III – Portals, Dig, 2-Speed & Jeep Wrangler JL Body

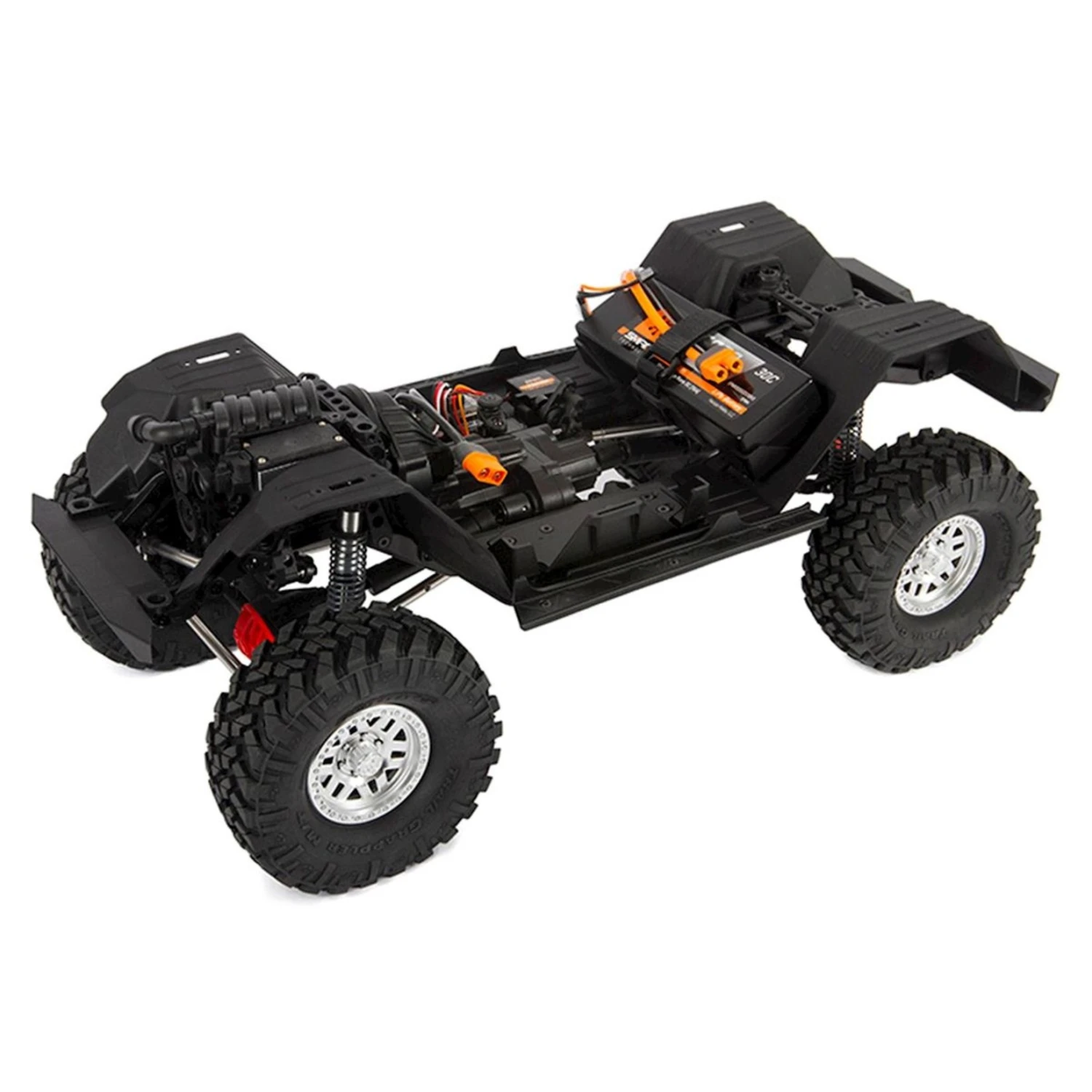

The Axial SCX10 III Jeep JL Wrangler incorporates the key components that have made the Axial SCX10 series successful – but takes realism and detail to a higher level. The SCX10 III includes a replica V8 engine to house the front-mounted 540 motor. It’s mated to a realistic transmission housing and transfer case, just like a 1:1 vehicle.

The unique and versatile transmission can be built in several ways. If using a 3-channel radio, you can set it up with a third-channel DIG function that lets you lock the rear axle from the transmitter for front wheel drive and a tighter turning radius. Another 3-channel option is to set up the vehicle with a two-speed transmission to select between high and low speeds. To have access to the two-speed transmission and DIG function simultaneously, just add another servo and use a radio with at least four channels!

The SCX10 III Jeep JL Wrangler kit features portal axles to improve performance by increasing the ground clearance at the pumpkin, while reducing torque twist. Its standard battery tray accepts full-size standard LiPo or NiMH packs. There’s also space on the side rails for drivers who prefer “shorty” packs. Inner fenders and floor sides hide the internal components that hinder the scale look.

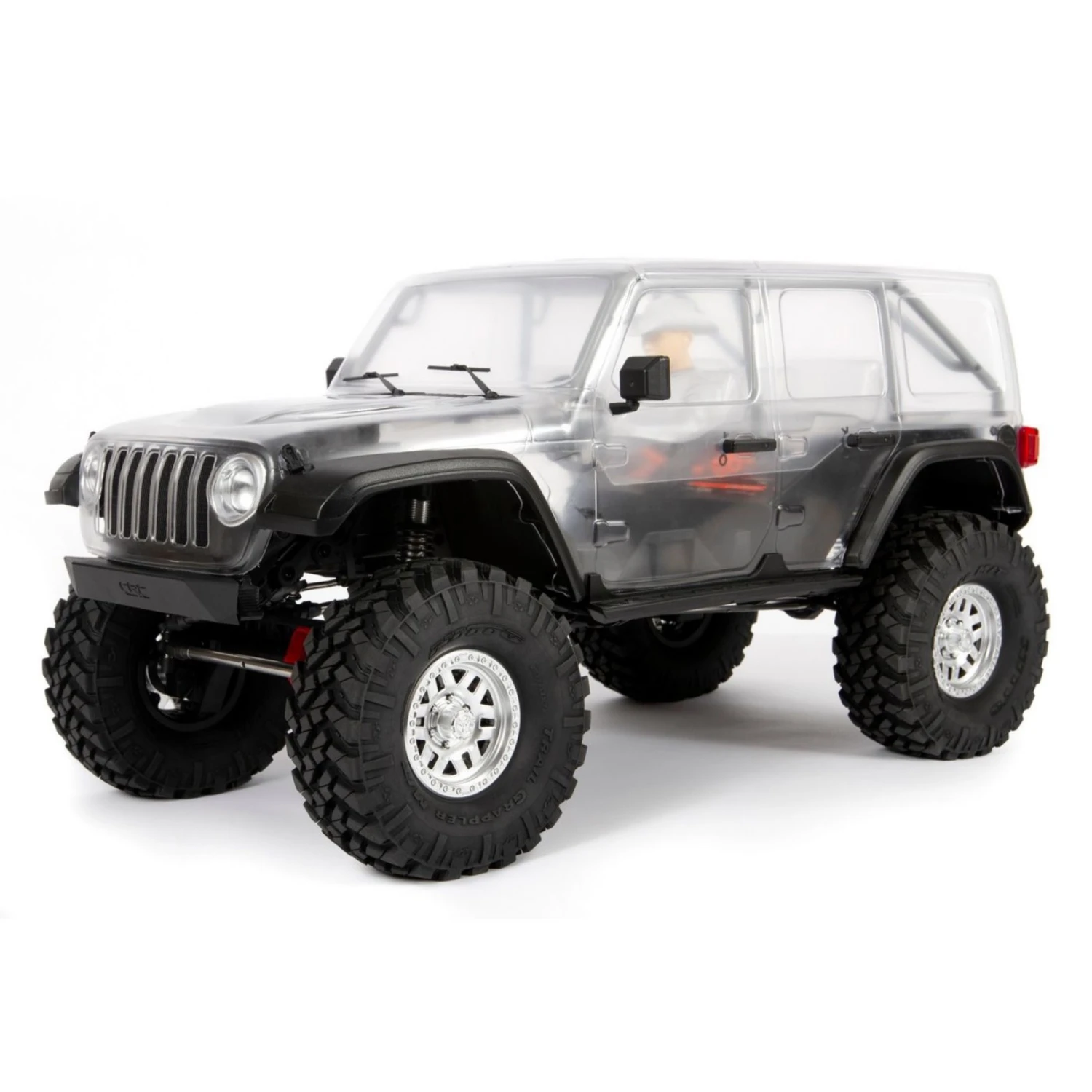

To top off the chassis, the kit comes with a clear Jeep Wrangler Unlimited four-door body that’s ready for finishing however you like. Scale details include a roll cage, front hood vents and cowl, windshield wipers, mirrors, door handles and more, plus a detailed interior. New taller and wider, officially licensed Nitto Trail Grappler tires on 3-piece licensed KMC Machete beadlock wheels add more scale realism and more grip on dirt, rocks, and all other off-road trails.

NOTE: Finished kit shown in photos is for illustrative purposes only. See needed to complete list below for a full list of items required to complete the model.

Features:

Replica V8 engine, transmission housing and transfer case cover and protect the motor while improving scale appearance

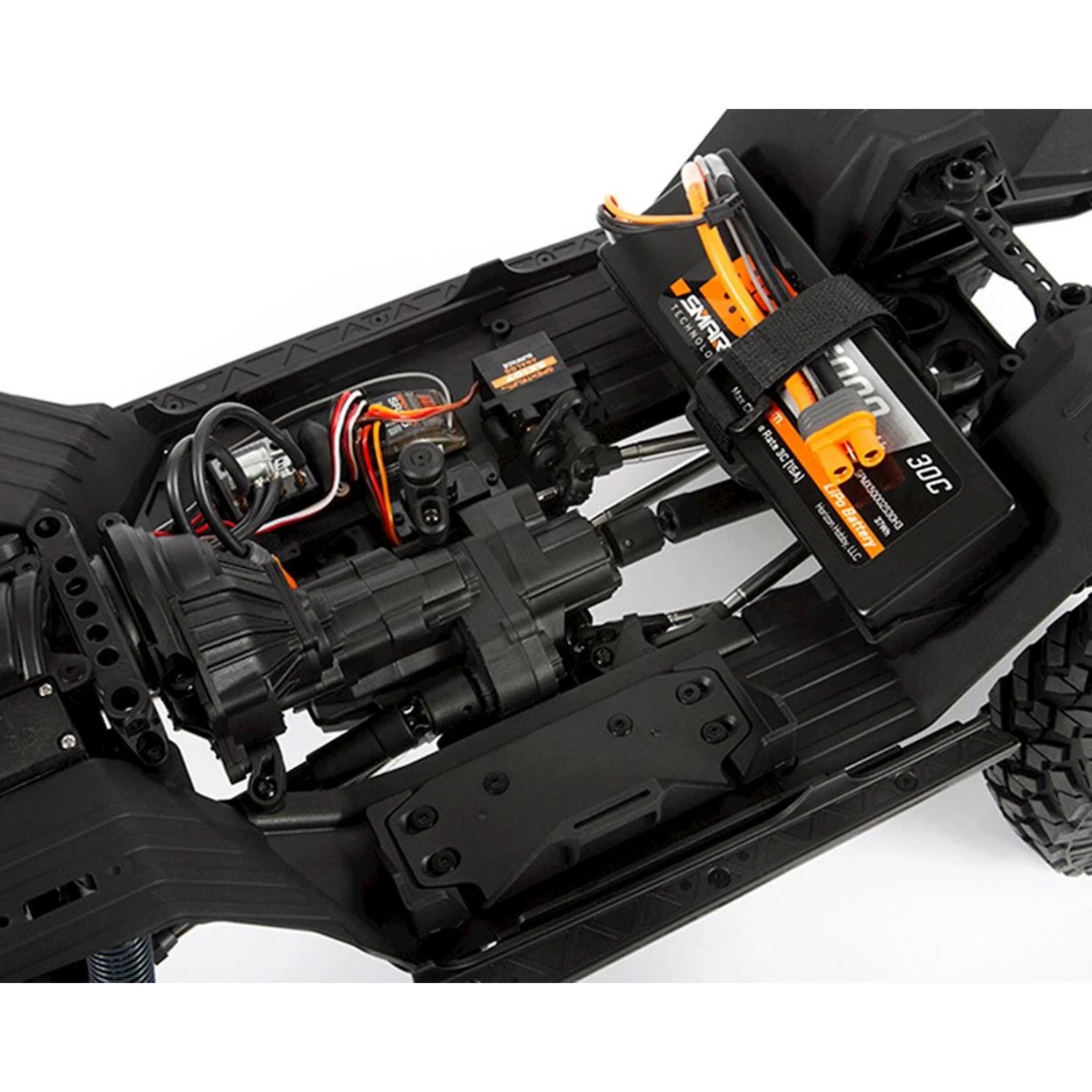

Chassis tray accepts full-size, standard LiPo or NiMH batteries, with space on the side rails for running small pack sizes
DIG function transmission setup lets you lock the rear axle from the transmitter for front wheel drive and a tighter turning radius
Two-speed transmission setup option also available for high and low speeds

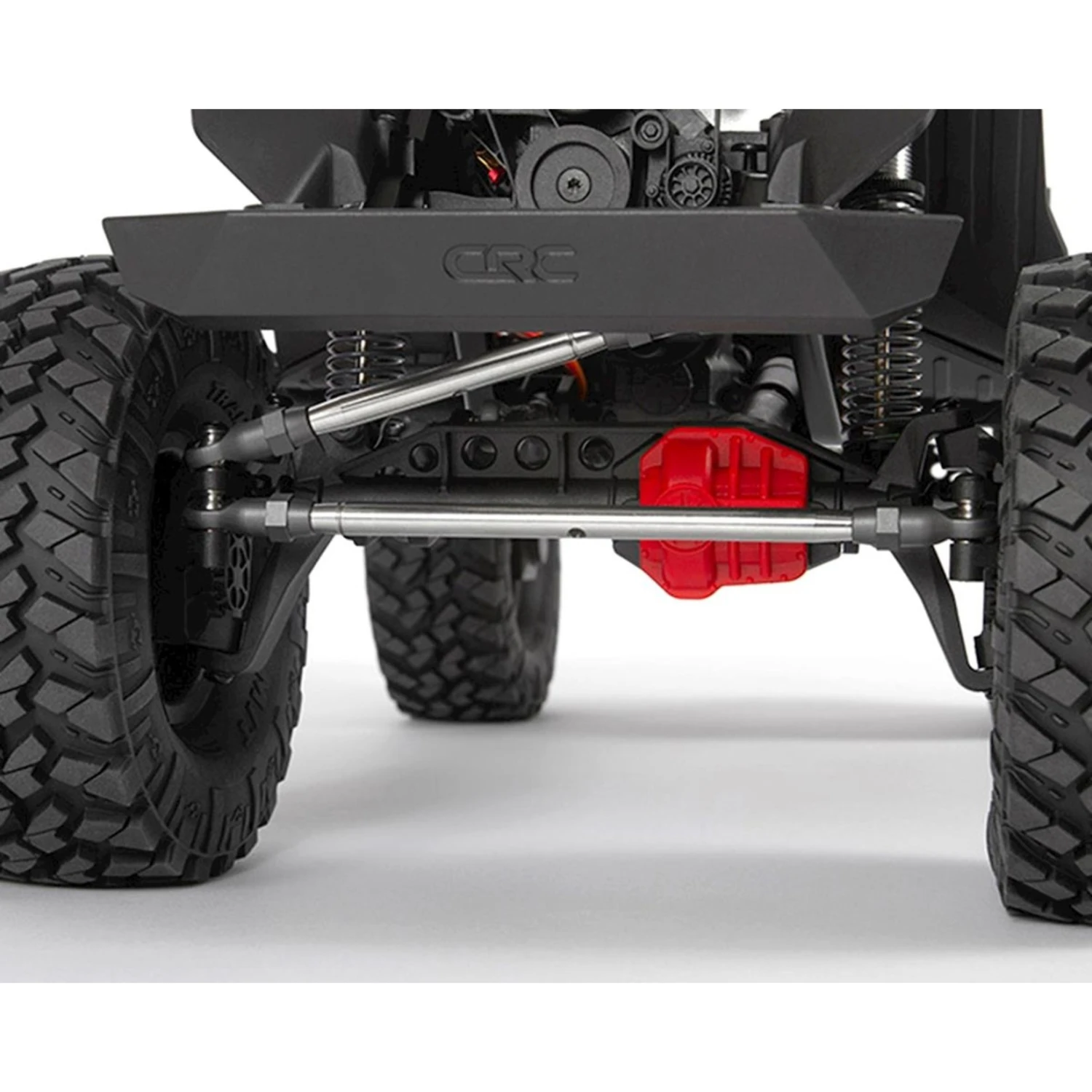

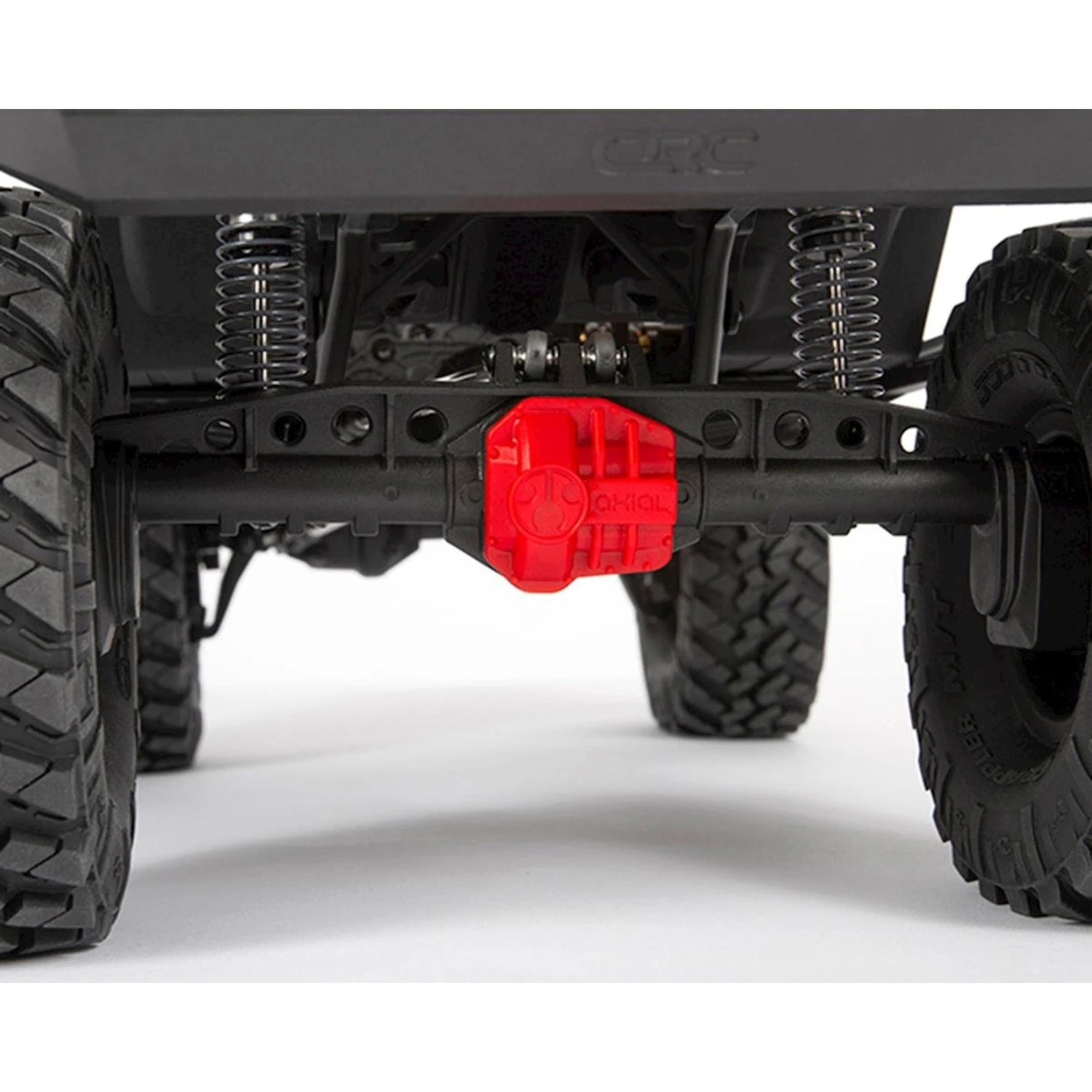

Portal axles increase ground clearance and reduce torque twist

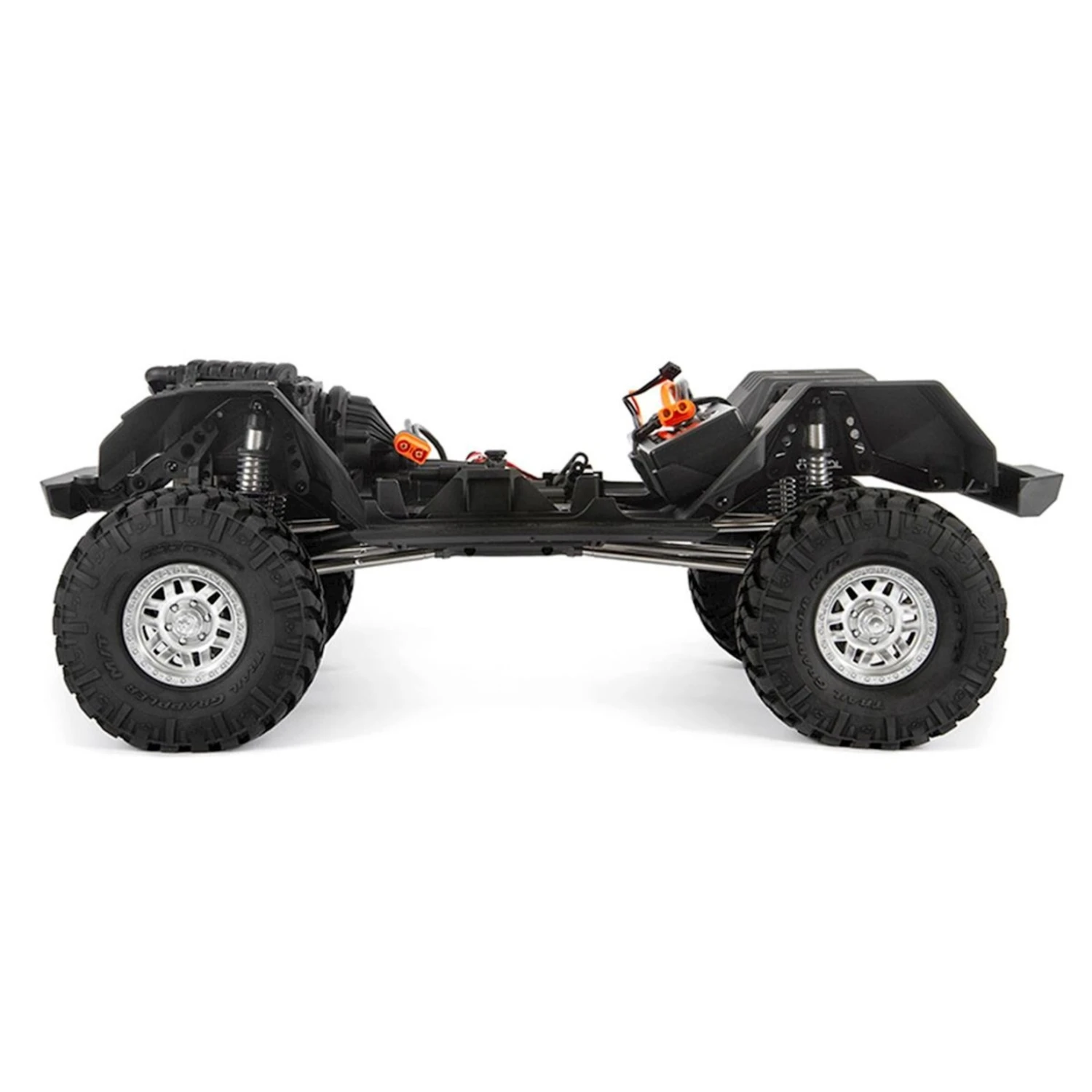

Adjustable wheelbase chassis allows each driver to choose the size of their chassis
Inner fenders and floor sides hide internal components usually visible from the side of the chassis
Licensed KMC Machete 3-piece beadlock wheels provide scale looks and let you remove and replace tires without gluing
Officially licensed Nitto Trail Grappler tires in a taller and wider size increase ground clearance and grip
Fully rebuildable, oil-filled shocks include hard anodized, threaded shock bodies, coilover springs, and an emulsion-style cap with screw for easier rebuilds
Clear scale Jeep® Wrangler Unlimited body with detailed interior

Specifications:
Approximate Assembly Time: 7-10 Hours
Ball Bearings: Complete set
Batteries: Sold separately
Body: Clear polycarbonate Jeep Wrangler Unlimited with detailed interior
Brakes: Integral with ESC
Bushing Material: Metal
Charger: Sold separately
Chassis: Adjustable steel C-channel
Completion Level: Kit
Differential: Locked
Drivetrain: 4WD
Final Drive Ratio: 45.6:1
Gear Pitch: 32-Pitch
Ground Clearance: 3 in (76.2mm)
Height: 9.5 in (241mm)
Length: 19.125 in (485mm)
Max Battery Dimensions: 5.47 x 1.85 x 0.98 in (139 x 47 x 25mm)
Motor Size: 540 (sold separately)
Motor Type: Brushed (sold separately)
Pinion: 14T
Radio: Sold separately
Scale: 1/10
Servos: Sold separately
Shock Type: Oil-filled coil over spring
Speed Control: Sold separately
Spur Gear: 40T
Suspension: Multi-link solid axle
Tire Compound: R30
Tire Diameter: 4.7 in (119mm)
Tire Tread: Nitto Trail Grappler M/T
Track: Front and Rear 8.9″ (226mm) distance from outer edges of tires measured side to side
Vehicle Type: Scale 4WD Crawler
Water-Resistant: Yes
Weight: 6.5 lbs (2.9kg)
Wheel Diameter: 1.9 in (48.3mm)
Wheel Hex Size: 12mm
Wheel Type: Injection molded 3-piece beadlock 1.9 KMC Machete
Wheel Width: 1 in (25.5mm)
Wheelbase: 12.3 in (312mm)
Width: 9.25 in (234mm)
