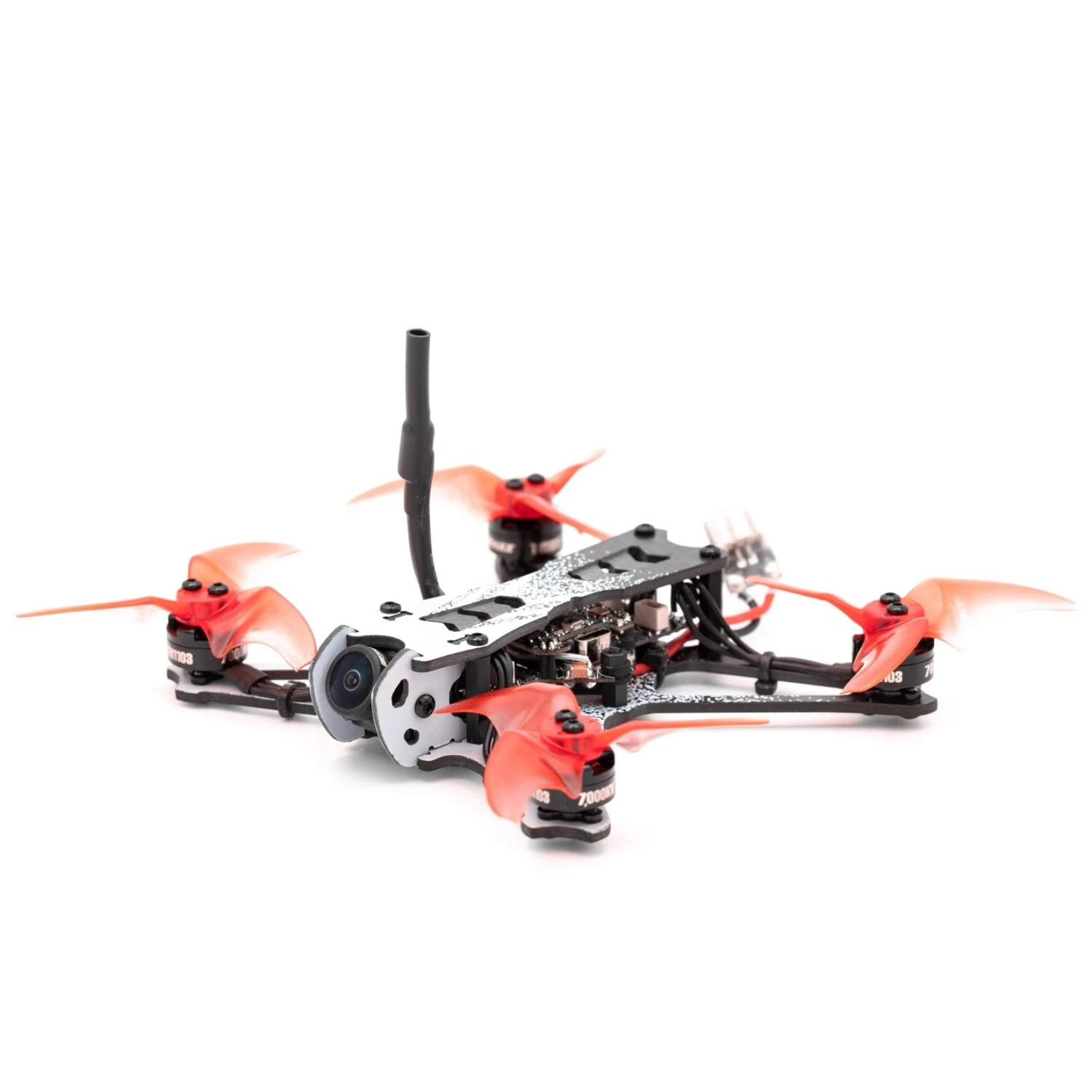

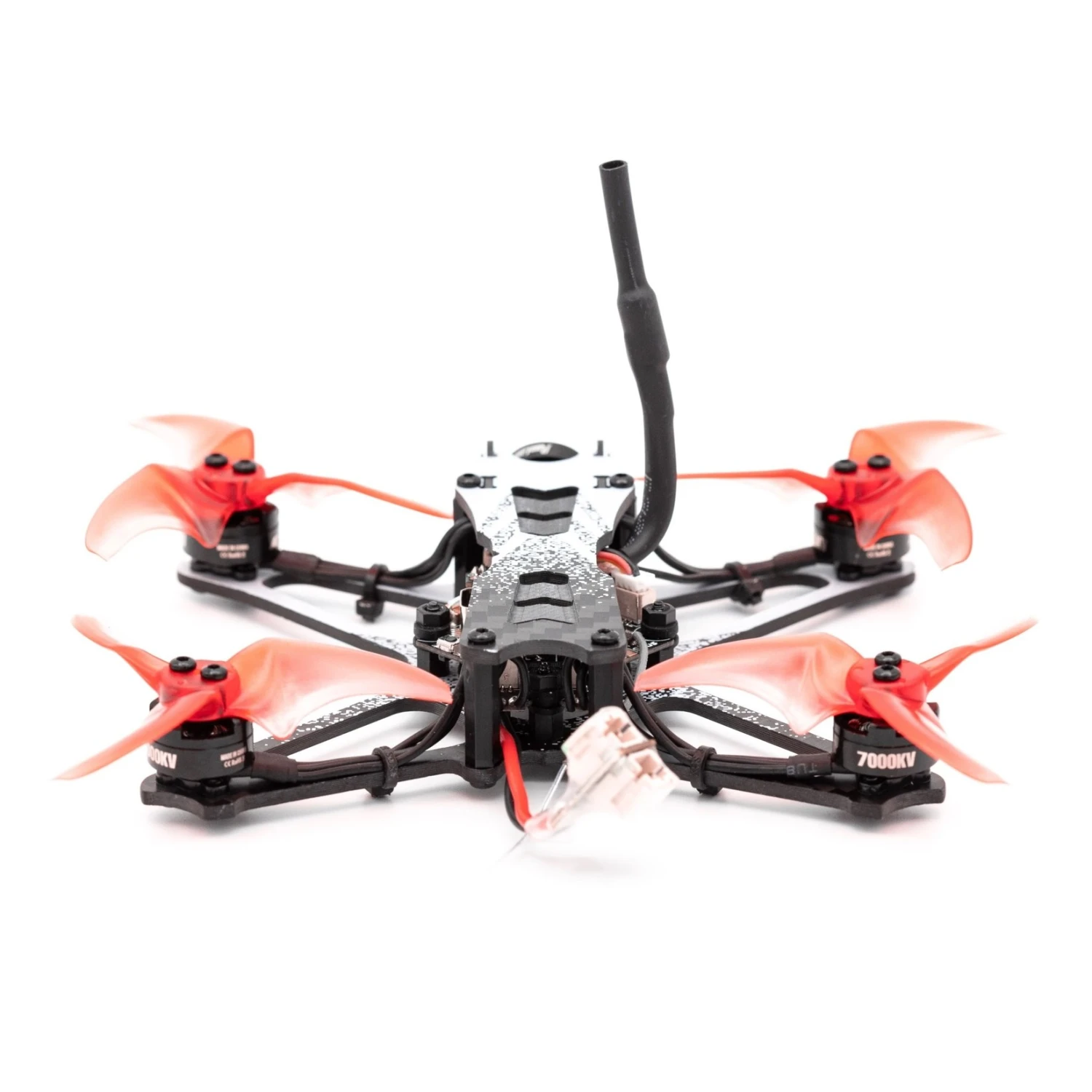

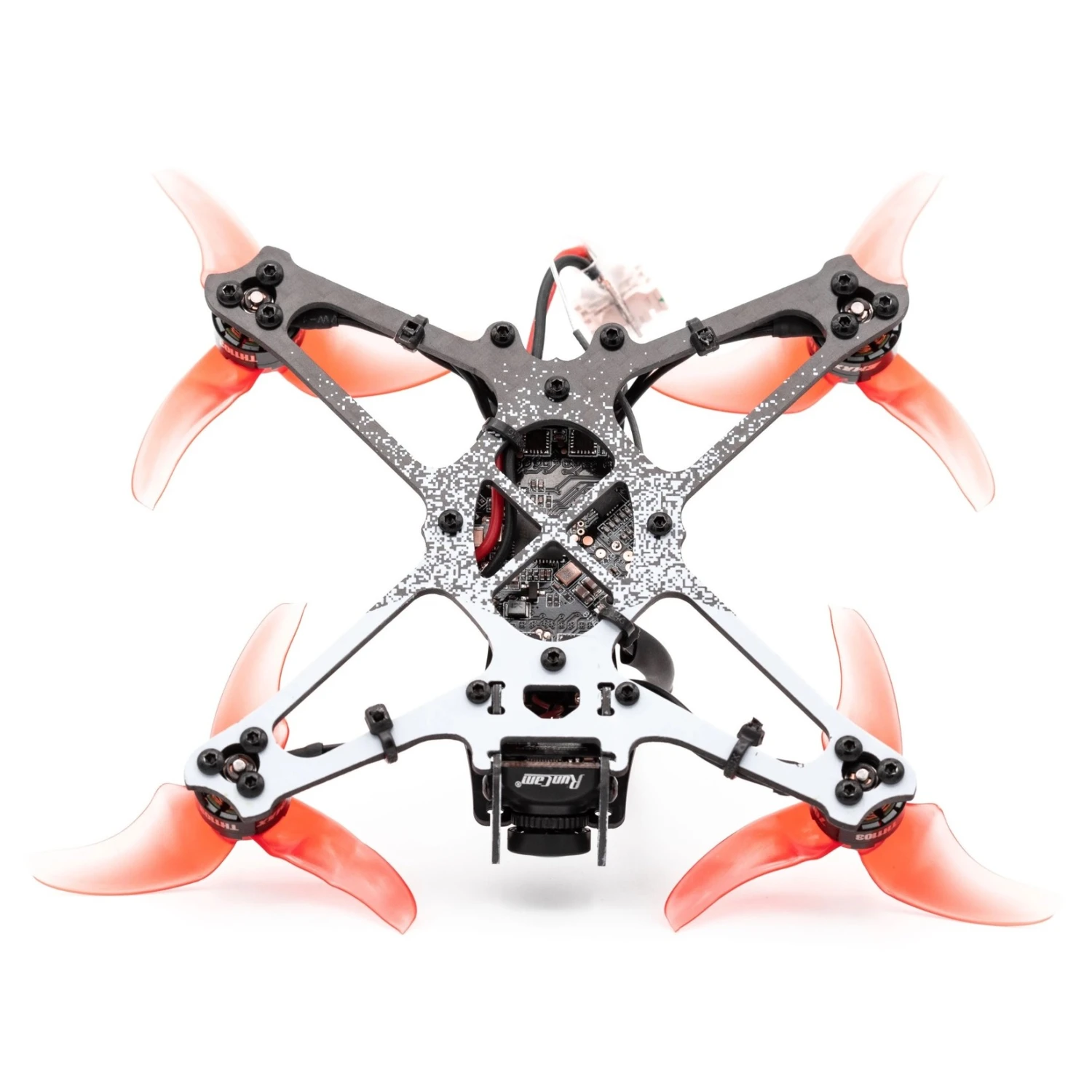

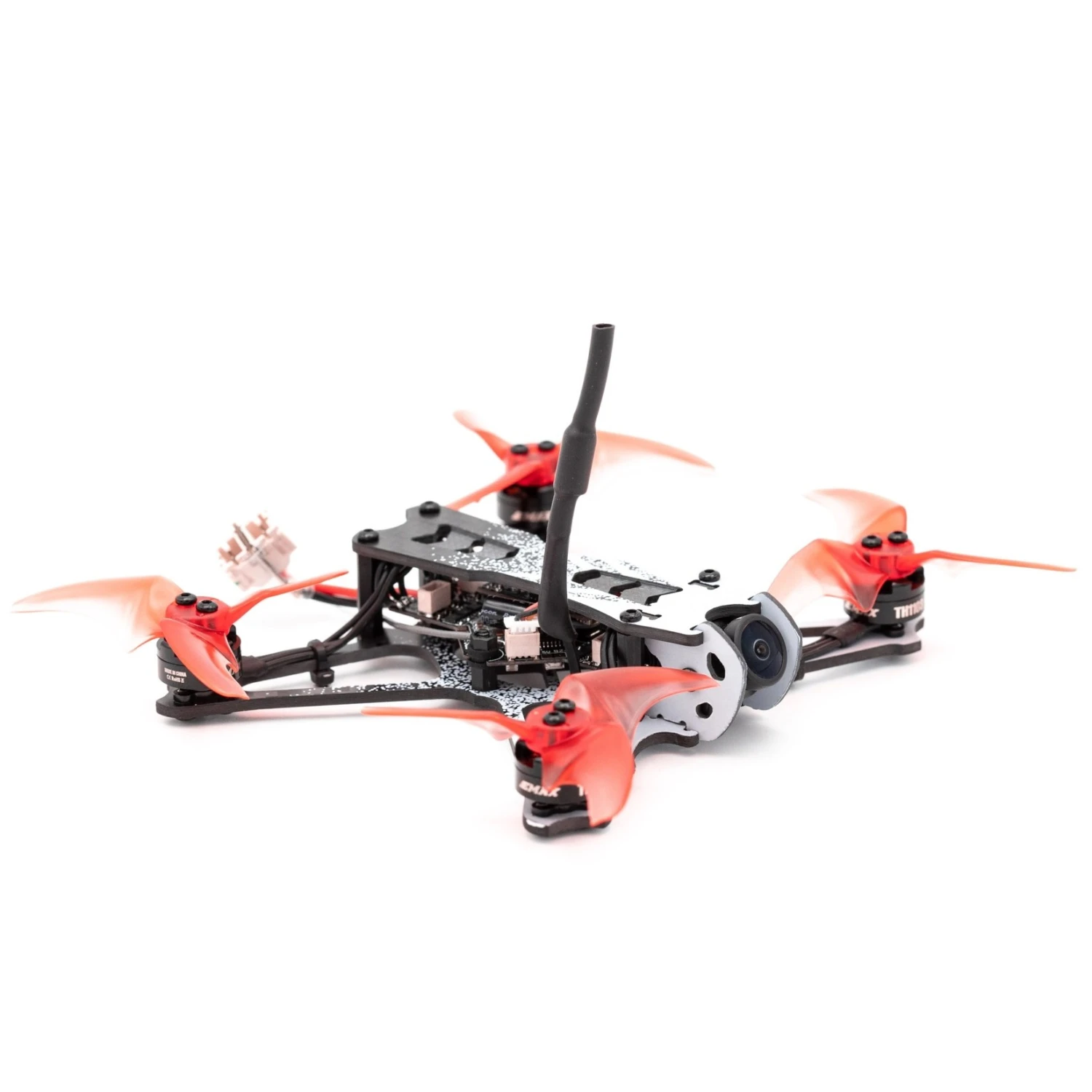

EMAX USA Tinyhawk II Freestyle RTF Kit W/Controller & Goggles #0110001106

Start FPV Outdoors

With and ergonomic controller and universal FPV goggle system, starting in FPV has never been simpler. Paired with the Tinyhawk II Freestyle, flying outdoors and exploring local terrain while maintaining control and long flight times is accessible.

Optimized Power System

Featuring a power system focused on control and flight time, the Tinyhawk II Freestyle utilizes a 1103 7000kV motor in order to achieve the optimal RPM needed to maximize flight time and efficiancy. By utilizing the AVAN Rush 2.5-inch propeller, grip and thrust are optimized for a variety of situations the pilot may encounter.

Enhanced Video

By re-designing the frame to accept a higher quality camera, the FPV experience is enhanced, allowing newfound clarity when navigating the environment. Paired together with a video transmission system that is 8x more powerful than its predecessor, video signal will no longer impede the user experience.

Durable Design

Designed out of aerospace grade 3k woven carbon fiber, durability is maximized allowing the aircraft to withstand high degrees of impact. Printed onto the frame is a designer pattern giving the aircraft an appeal like no other.

A New Experience

The Tinyhawk II Freestyle offers unparalleled performance and FPV experience unlike any other outdoor drone in its class.

Specifications

Frame

• Wheelbase: 115mm
• Dry Weight: 49g
• All Up Weight: 79g with 2x 450mAh 1S battery
• Frame Material: Carbon Fiber

• Stator Size: 1103
• Kv: 7000kv
• Propeller Mount: T-mount, 1.5mm shaft
• Propeller: Avan Rush 2.5″

• Flight Controller: F4 (MATEKF411RX Firmware)
• ESC: 4-in-1 5A BlHeli_S
• Receiver: EMAX SPI Receiver
• Battery Connector: JST-PH2.0 Duo

• VTX Power: 25/100/200mw Switchable (set to stay at 25mW until armed) *
• Channels: 37CH incl. Raceband
• Camera: RunCam Nano 2 1/3″ 700TVL CMOS
• Smart Audio Connected

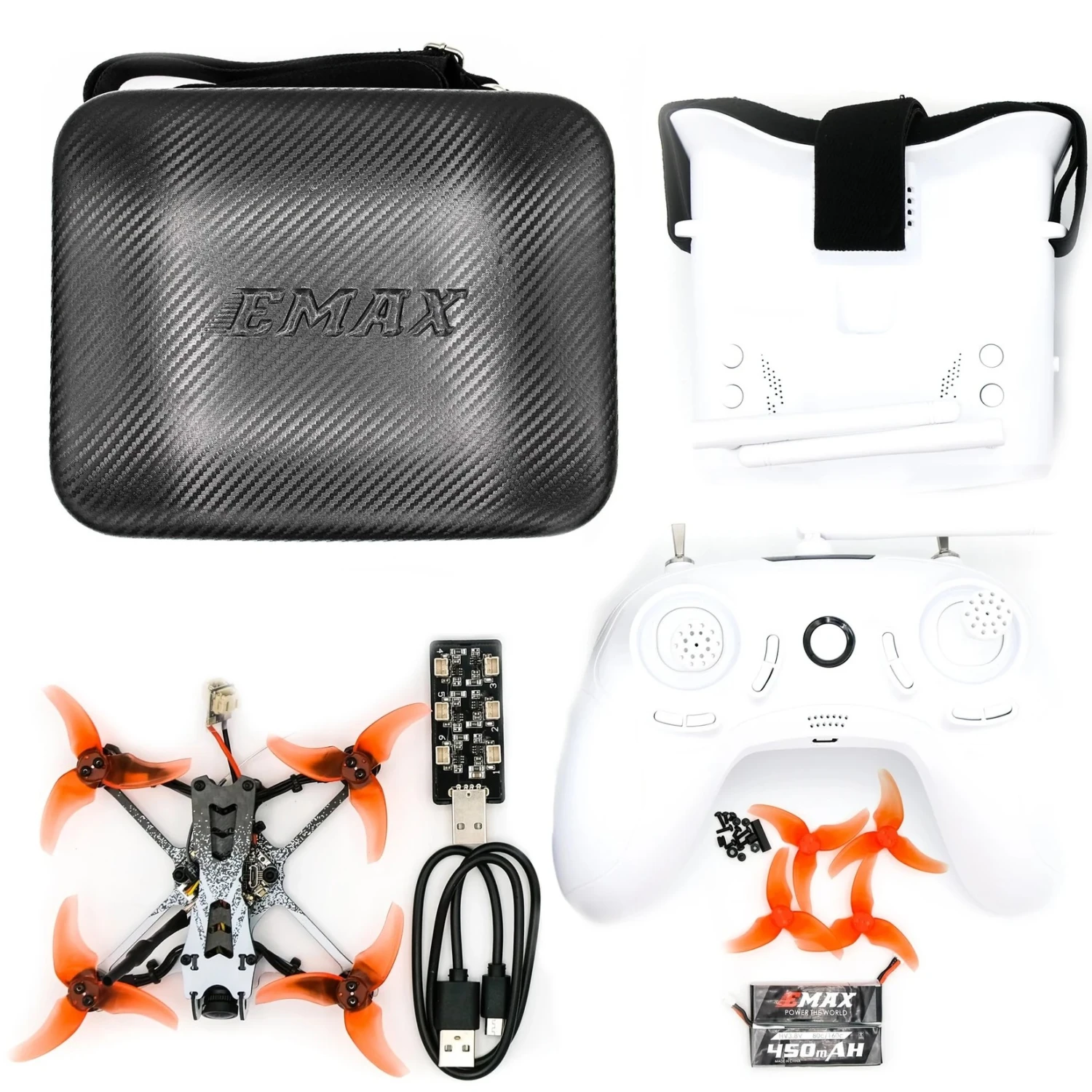

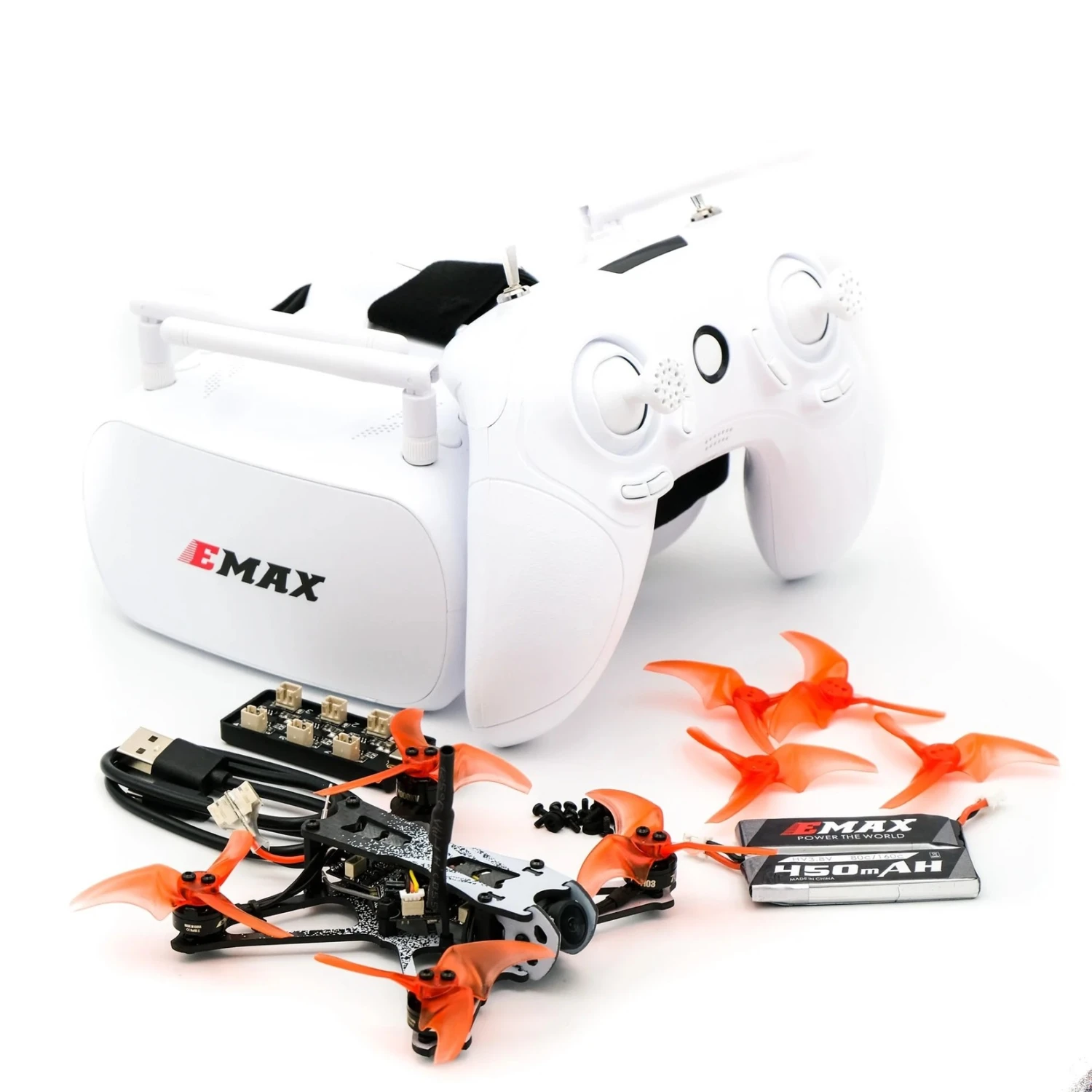

• 1x Tinyhawk II Freestyle Drone

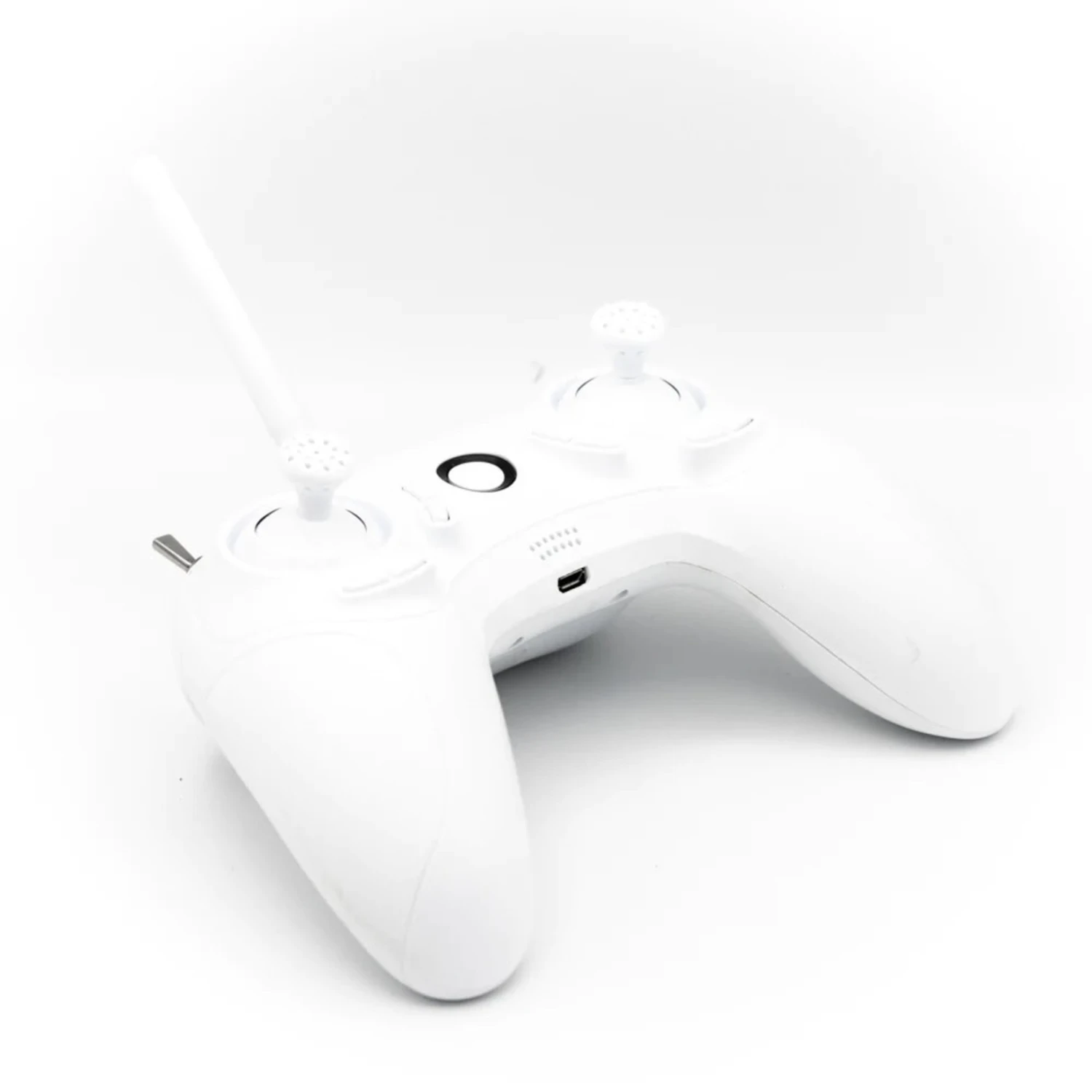

• 1x E6 Transmitter

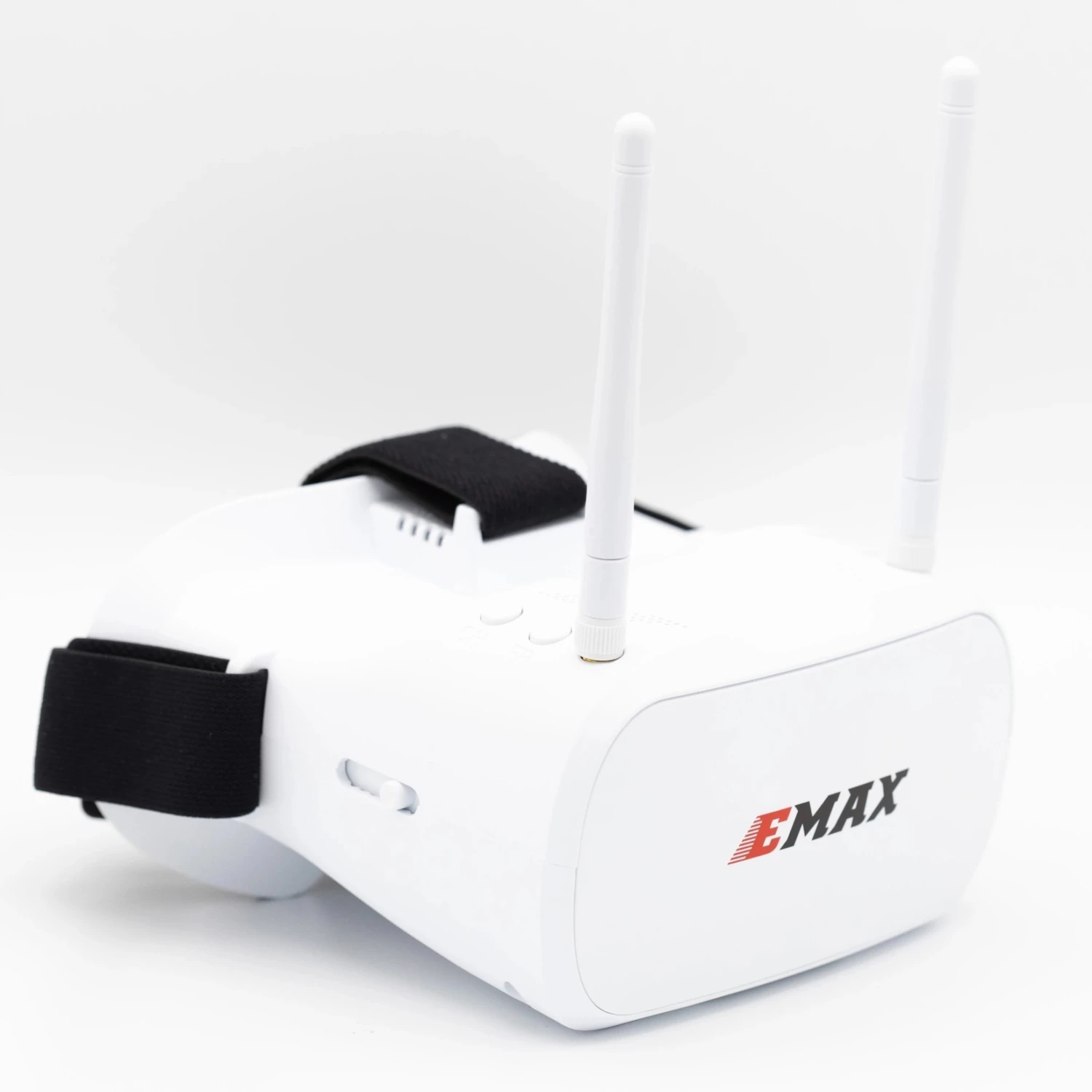

• 1x Transporter Goggles w/ Battery + Antennas
• 2x EMAX 450mAh 1S HV Battery
• 1x 1S USB LiPo Charger
• 1x Screwdriver + Hardware Kit
• 1x Carbon Fiber Carrying Case

*Please note that even if you unlocked the video transmitter (VTX) per the manual and are changing power levels via the OSD/Smart Audio (VTX SA), the Tinyhawk II Freestyle is set to stay at 25mW until you arm the motors.
