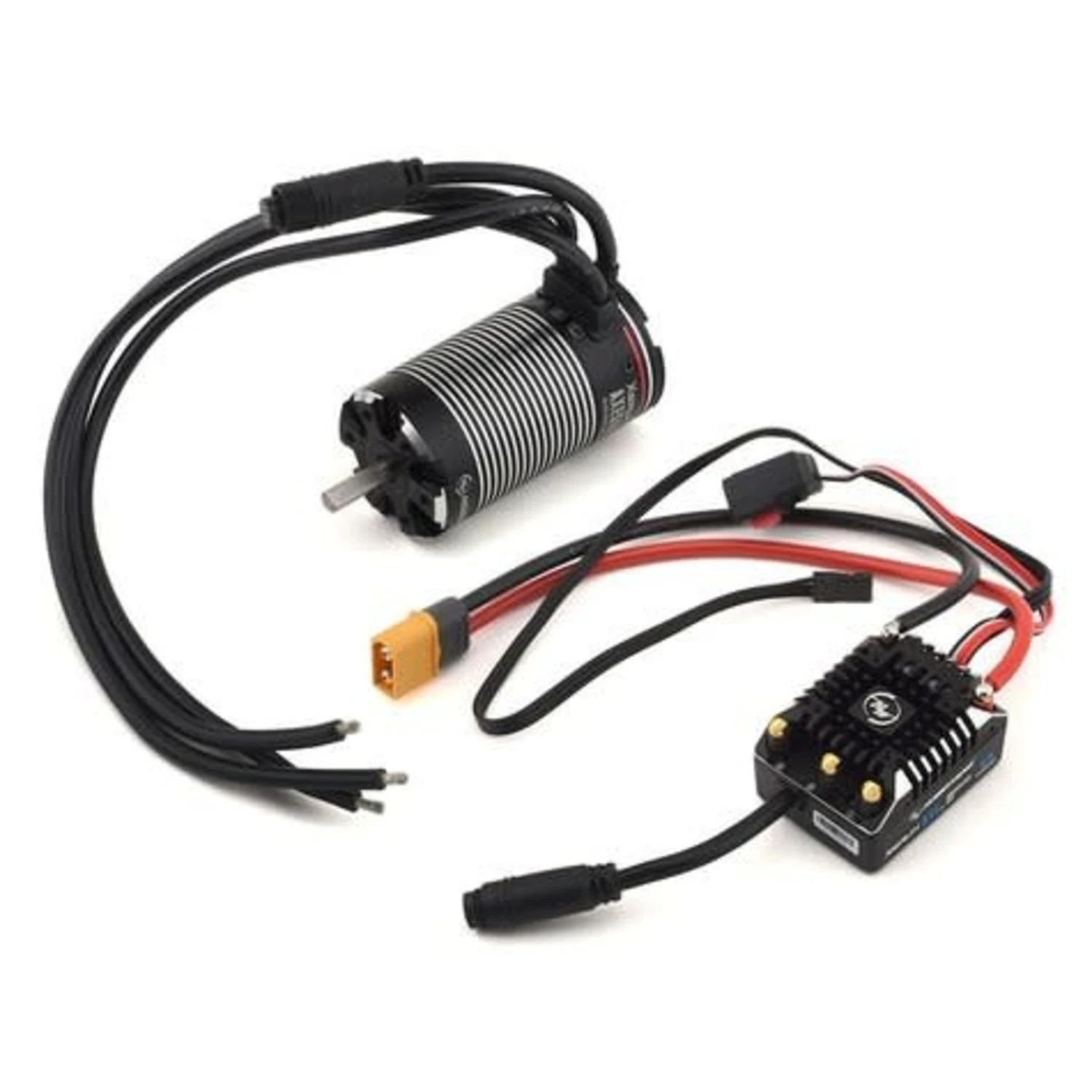

Hobbywing EZRun MAX6 V3 Sensorless Brushless ESC & Motor Combo W/5687SL (1100kV) #38010802

The Hobbywing EZRun MAX6 V3 Sensorless Brushless ESC & Motor Combo includes the 5687SL 1/5 scale, 1150kV motor and is a great option for high-end, aggressively powered, large scale 8S builds. Specifications: Motor: Model: 5687SL-1100KV Pole: 4 KV (No-load): 1100KV Resistance: 0.0041 Ω Current (No-load): 4.1 A Max Output Power: 5800 W Current at the point of M.O.P: 200 A Motor Diameter: 56mm Motor Length: 87mm Shaft Diameter: 8.0mm Shaft Length: 31.0mm LiPo Cells: 3-8 Weight: 916g (32.21oz) Applicable: 1/5th RC Vehicles Truck/Dragster ESC: Continuous Current: 160A Peak Current: Peak Current: Peak Current: 1,050A Motor Type: Sensorless Brushless Motor Applications: 1/6th Touring Car, Buggy, Truggy and Truck Motor Limit: With 6S LiPo/18S NiMH: KV ≤1500 (5892 size motor); With 8S LiPo/24S NiMH: KV ≤1200 (5892 size motor) LiPo/NiMH Cells: 9-24S NiMH, 3-8S LiPo BEC Output: 6V/7.2V Switchable, Continuous Current of 6A (Switch-mode BEC) Cooling Fan: Powered by the stable BEC voltage of 6V/7.2V Connectors: Input End: None, Output End: Female 6.5mm Gold Connectors (pre-soldered onto the PCB of the speed controller) Size (LxWxH): 70x56x46.5mm Weight: 240g Programming Port: FAN /PRG Port
