Platinum Pro 150 Amp Brushless ESC V5, 3S-8S

Platinum Pro 150 Amp Brushless ESC V5, 3S-8S - Image 2

Platinum Pro 150 Amp Brushless ESC V5, 3S-8S - Image 3

Platinum Pro 150 Amp Brushless ESC V5, 3S-8S - Image 4

Platinum Pro 150 Amp Brushless ESC V5, 3S-8S - Image 5

Platinum Pro 150 Amp Brushless ESC V5, 3S-8S - Image 6

Platinum Pro 150 Amp Brushless ESC V5, 3S-8S - Image 7

Platinum Pro 150 Amp Brushless ESC V5, 3S-8S

Original price was: $189.99.Current price is: $99.99.

SKU: HWI30203500 Categories: Electronic Speed Controls, Parts & Electronics & Accessories Tag: HOBBYWING NORTH AMERICA

Get Quality, Get More
No-Questions-Asked Returns
Service that stands out, online and always timely.
fast shipping

Description
Reviews (0)

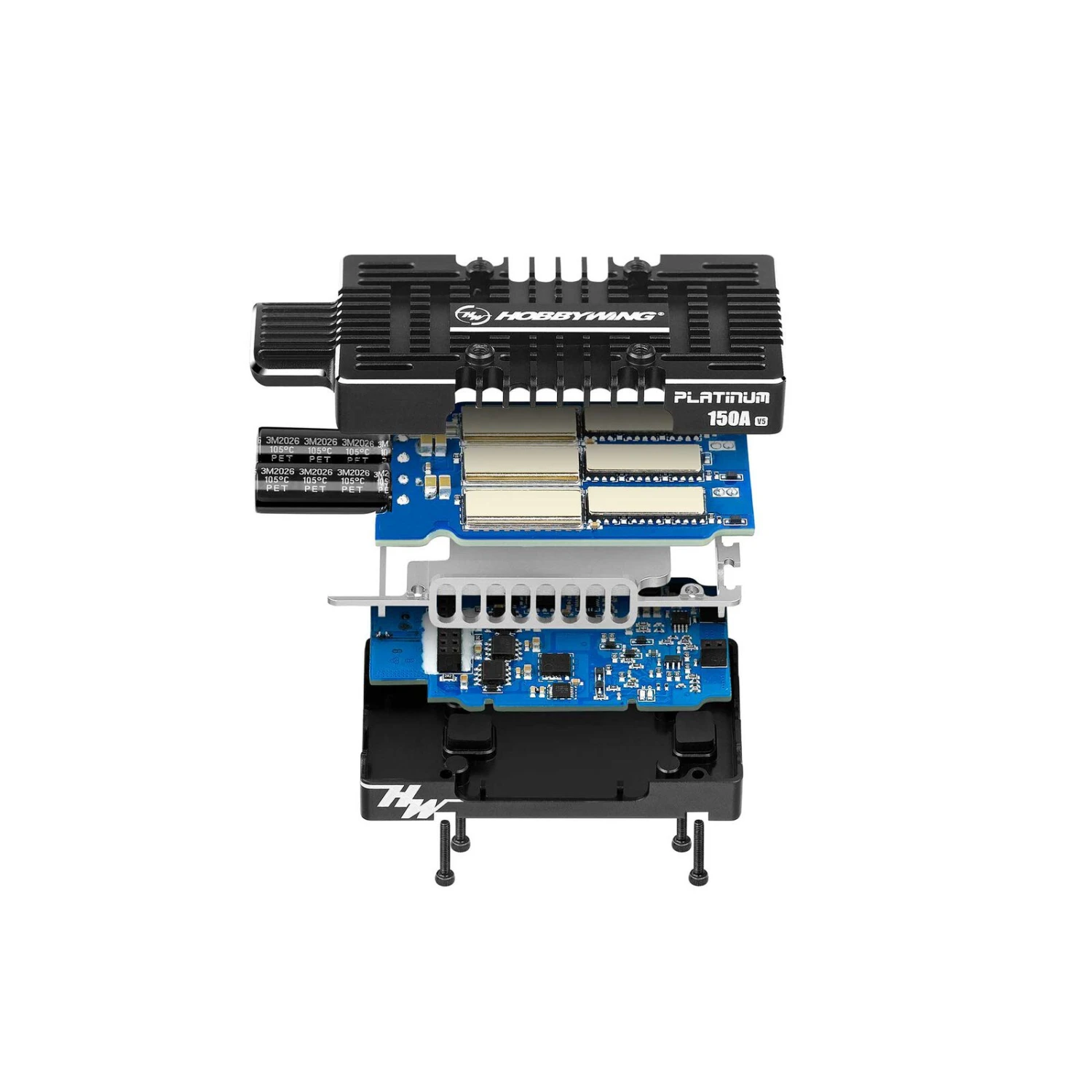

Double-sided cooling Structure

The double-sided structure of the circuit board has been re-designed to improve heat dissipation. The “open” design has allowed for better internal airflow circulation, resulting in a better cooling effect. Using thermal conductive tape and an additional heat-sink would prolong the life and improves heat dissipation on the external capacitors. The thermal scale duct design has enhanced the cooling effect for the ESC to work cooler and more stable in the most extreme of conditions.

Smaller size, Stronger flow resistance

The breakthrough new re-designed circuity has a more robust thermal structure in order for the Platinum V5 to achieve a stronger flow resistance. The smaller footprint design further improves assembly process, resulting in the ESC from touching the head cover (canop).

Superior fixed speed capabilities

The 32-bit processor combines with advanced algorithms fromthe Hobbywing engineers are key to maximizing the full potential of the ESC. The fixed speed sensitivity is now fully adjustable. This allows users to quickly find the suitable settings to suit their flying style, performing advanced aerobatic maneuvers and 3D flying at ease with precision.

PROTECT YOUR INVESTMENT

Your investment is protected by HOBBYWING 6 stage-multi-protection functionality:

Start-up protection

Current protection

Temperature protection

Overload protection

Throttle signal loss protection

Input voltage protection

Multiple braking modes for fixed wing flights

Brake off, Ordinary brake, Proportional brake and Reverse brake.

In the brake mode, the brake strength can be adjusted.

In the proportional brake mode, brake strength is automatically assigned though the throttle rocker position.

In reverse brake, the remote control system is able to achieve and control forward and reverse.

Key Features

Double Sided Cooling Structure
Ideal for 550 Class Helicopter
High-Power BEC
Compact Design

Product Specifications

Adjustable Timing	Yes
Brakes	User Settable
Programmable	Yes
Auto Cutoff	Yes
BEC Continous Current	10A
Overload Protection	Yes
Product Weight	4.93oz (140g)
Water-Resistant	No
Product Width	1.47″ (37 mm)
Connector Type	4mm Bullet
Product Length	3.25″ (83 mm)
Maximum Burst Current	180A (10 seconds)
Maximum Continuous Current	150A
BEC	Yes
BEC Maximum Burst Current	30A
BEC Voltage	5.4v – 8.4v (0.1v step)
Input Voltage	3 – 8S LiPo
Product Height	0.65″ (17 mm)
Forward	Yes
Reverse	Yes
