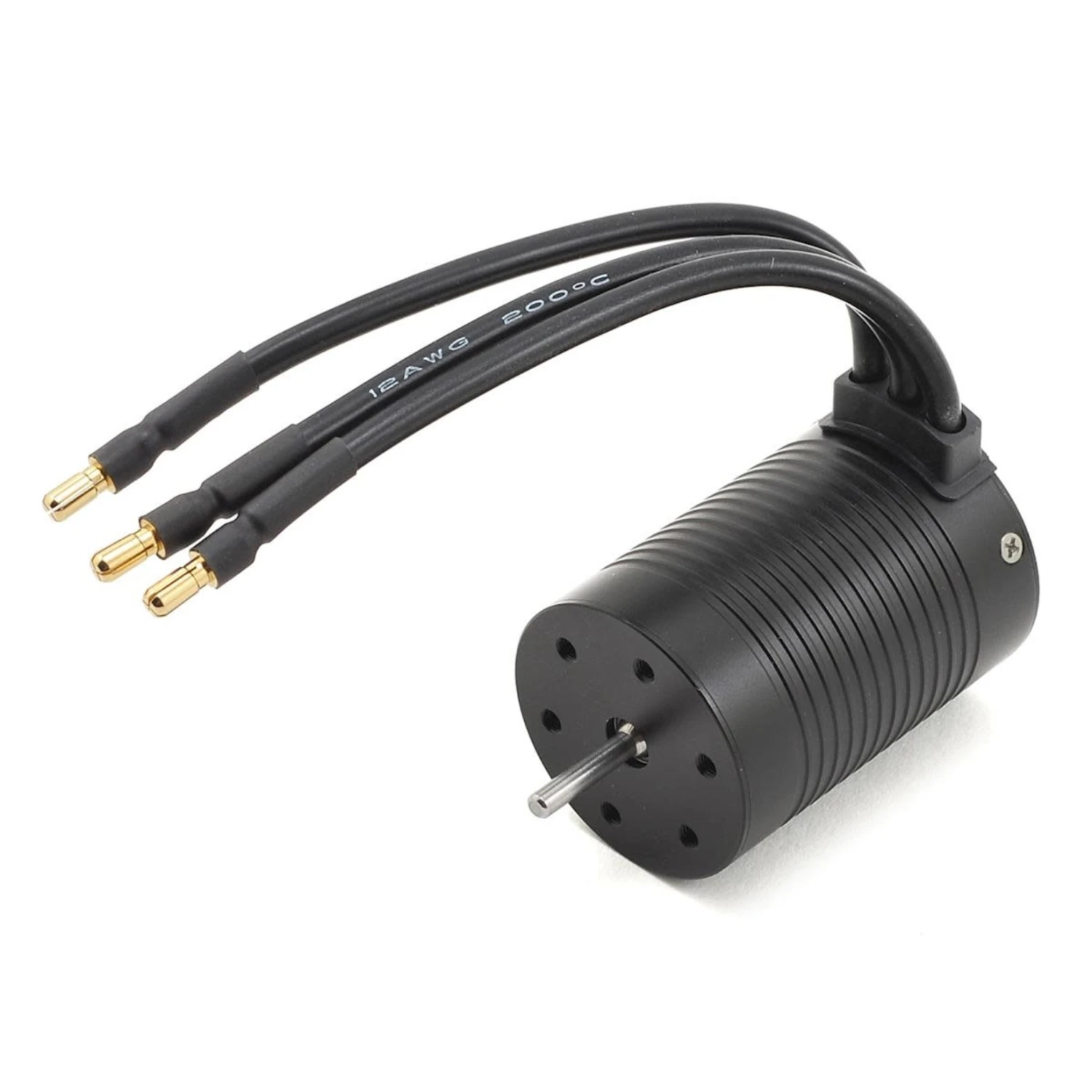

Reedy 540-SL4 Sensorless 4-Pole Brushless Motor (3300kV) #907

The Reedy 540-SL4 is a great upgrade option for your sensorless brushless RTR! Due to its sensorless 4-pole configuration, the 540-SL4 operates powerfully, efficiently, and reliably in a variety of vehicles and ESC applications.

The 3300kV rating provides plenty of speed with 2S LiPo batteries. But install a 3S LiPo battery for insane speeds that are barely controllable! A high-strength rotor provides plenty of torque and resists overheating better than 2-pole alternatives.

Flexible silicone wires ease wire routing in tight spaces and work in conjunction with 3.5mm bullet connectors to reduce power-robbing resistance and heat. Triple insulated windings, a hardened steel shaft, and oversized ball bearings enhance reliability to keep you out of the pits and on the track.

Features:

• Powerful 4-pole sensorless design
• Oversized precision ball bearings
• High-strength rotor
• Hardened steel shaft
• Triple insulated windings
• Flexible silicone wires
• Low-resistance connectors

Specifications

• Cells: 2-3 LiPo, 4-9 NiMH
• kV rating: 3300
• Applications: 1:10 buggy, truck, touring car
• Dimensions: 52mm x 36mm
• Shaft Diameter: 3.17mm (1/8″)
• Weight: 211g
• Power Wires: 12-gauge silicone
• Connectors: 3.5mm
