Spektrum Avian 8075-230Kv Outrunner Brushless Motor
Original price was: $249.99.$96.99Current price is: $96.99.
- Get Quality, Get More
- No-Questions-Asked Returns
- Service that stands out, online and always timely.
- fast shipping
Take to the Skies with Spektrum Avian Brushless Motors for Fixed-wing Models
The combination of superior performance, high reliability and user-friendly features makes the Spektrum Avian Brushless Motors an excellent choice for your next aircraft project. Plus, the wide selection means there’s Avian Brushless motor that’s ideal for whatever the application, including brushed-to-brushless upgrades as well as combustion-to-electric conversions. Equip your airplane with an Avian motor to compliment your Smart Technology equipped models!
Key Benefits
- Rapid Acceleration and Extreme Torque: Expertly engineered to deliver fast, smooth and precise acceleration and power.
- Reliable and Virtually Maintenance-free: Equipped with double-shielded sealed bearings, precision balanced motor bell and gold-plated bullet connectors.
- Excellent Cooling: Engineered to help airflow move through the motor for efficient cooling during and after flight.
Features
- Lightweight design
- Powerful and durable Rare-Earth Neodymium magnets
- 14-pole stator for smooth and precise propulsion

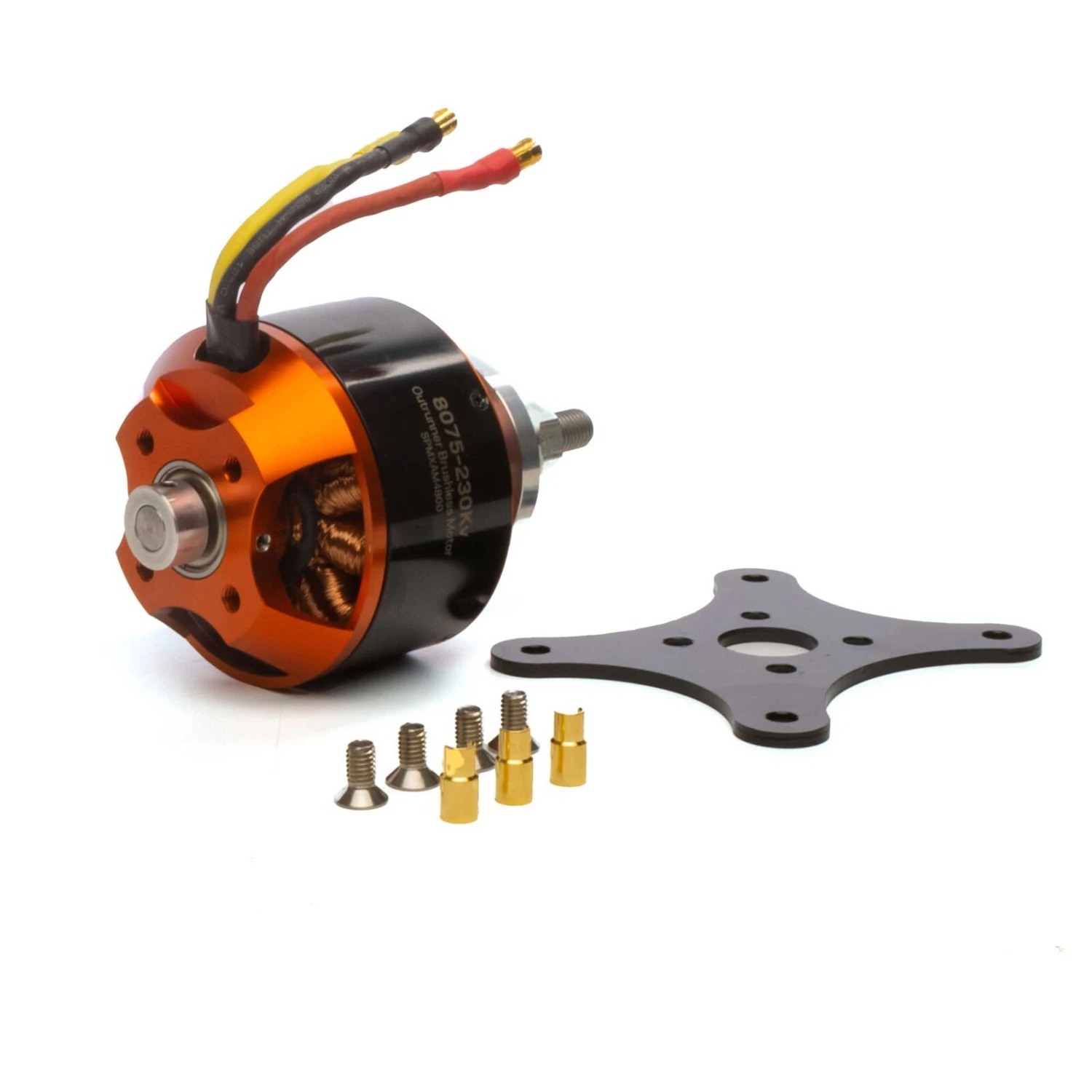

- Includes all required hardware: preinstalled gold plated bullet connectors, aluminum motor mount, prop adapter and female ESC connectors
- Perfect match for the Spektrum Smart Avian 120 amp HV ESC
- Perfect electric conversion upgrade for 50cc size gas combustion power systems
Important Specs
- Recommended Voltage Range – 33.3-55.5V / 9-15S LiPo
- Recommended Propeller Range – 22×8 to 26×10 Propeller
- Recommended Model Flying weight – 3D 8.17kg (18 lbs) – Sport 12.7kg (28 lbs)
- Max Wattage – 3750w
- Max Current – Max Burst Amps (125A) Max Continuous Amps (110A)
Key Benefits
Product Specifications
| Motor Design | Outrunner |
| Constant Wattage | 3000W or more |
| Maximum Burst Current | 135A |
| Maximum Continuous Current | 110A |
| Motor Type | Brushless |
| Motor Output Lead | 6 |
| Recommended Speed Control | 80 – 100A |
| RPM/Volt (Kv) | 230 |
| Sensor Type | Sensordless |
| Shaft Length | 0.79″ (20 mm) |
| Connector Type | 4mm Bullet |
| Motor Class | Giant Scale |
| Product Length | 2.9″ (74 mm) |
| Application | 3D Airplanes up to 18.0lb (8.17kg), Sport Planes up to 28.0lb (12.7kg) |
| Number of Poles | 14 |
| Product Weight | 44.1oz (1250g) |
| Shaft Diameter | 0.39″ (10 mm) |
| Adjustable Timing | No |
| Integrated ESC | No |
| Outer Diameter | 3.14″ (80 mm) |
| Input Voltage | 33.3 – 55.5V |
| Kv Rating | 0-250Kv |
